Name: cerasonar concrete mini v2 - preorder now
Brand: cerasonar
SKU: 1218-8
Availability: InStock

cerasonar concrete mini v2 - preorder now

€826,35

Impedance

100V

LED light with diffuser and mounting parts

Yes

Anti theft cable

Yes

Our concrete mini v2 #outdoorspeaker at a glance

⚪ Material: Made of concrete - a real statement of value and durability.
⚪ Sound: 360° sound radiation thanks to diffuser.
⚪ Design: Discreet, yet a real eye-catcher in the garden.
⚪ Dimensions: Compact with 17,5 cm diameter and 25cm height.
⚪ Technical details: 4" neodymium longstroke driver (PE cone) and double bass reflex channel for impressive sound, 1" tweeter (PEI cone)
⚪ Expandability & combination: Can be combined with a subwoofer for extra power. To ensure the best sound experience, the use of our cerasonar amplifier, either the cs-500dsp4 (dynamic bass boost feature) or the cs-2000dsp4, is required.
⚪ Optional:
- LED light 12-24V
- Anti-theft cable (M5, length: 225 mm)

Power rating: 50 w RMS (100 w max)
Impedance: 8 ohms
Frequency range: 45 - 20.000 hz*
max SPL: 104 dB
Dispersion range: 360°
Single stereo mode: no
Weight: to be determined
Dimensions: 175 x 175 x 250 mm
Driver: 1x 4" woofer - bassreflex tuned @ 65 Hz, 1x 1" tweeter
LED: 2w usable @12v or 24v
Application: indoor / outdoor

Required cable: 1x 2 wires (speaker) + 1x 2 wires for LED (12v or 24v)
Required amp: cs-500dsp4 (recommended) or cs-2000dsp4

* with cs-500dsp4 (dynamic bass boost preset)

code: 1329 (LED light with diffuser and mounting parts)
code: 1330 - (anti theft cable)

cerasonar concrete mini v2 - 8 ohms
fullrange
file name: 1218-8-FR
TIPP: place the speaker nearby wall to enjoy bass down to 40 Hz!

cs-500dsp4 v2 - DOWNLOAD
cs-2000dsp4 - DOWNLOAD

----------

cerasonar concrete mini v2 - 100v
fullrange
file name: 1218-100-FR
TIPP: place the speaker nearby wall to enjoy bass down to 40 Hz!

cs-500dsp4 v2 - DOWNLOAD
cs-2000dsp4 - DOWNLOAD

----------

cerasonar concrete mini v2 - 8 ohms
high pass @ 120 Hz for subwoofer use
file name: 1218-8-HP

cs-500dsp4 v2 - DOWNLOAD
cs-2000dsp4 - DOWNLOAD

----------

cerasonar concrete mini v2 - 100v
high pass @ 120 Hz for subwoofer use
file name: 1218-8-HP
cs-500dsp4 v2 - DOWNLOAD
cs-2000dsp4 - DOWNLOAD

Installation instructions - DOWNLOAD

[{"id":46020582277387,"title":"8 \/ Yes \/ Yes","option1":"8","option2":"Yes","option3":"Yes","sku":"1218-8","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"cerasonar concrete mini v2 - preorder now - 8 \/ Yes \/ Yes","public_title":"8 \/ Yes \/ Yes","options":["8","Yes","Yes"],"weight":10000,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46598469189899,"title":"8 \/ Yes \/ No","option1":"8","option2":"Yes","option3":"No","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"cerasonar concrete mini v2 - preorder now - 8 \/ Yes \/ No","public_title":"8 \/ Yes \/ No","options":["8","Yes","No"],"hidden_prop":78540,"weight":10000,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46598454477067,"title":"8 \/ No \/ Yes","option1":"8","option2":"No","option3":"Yes","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"cerasonar concrete mini v2 - preorder now - 8 \/ No \/ Yes","public_title":"8 \/ No \/ Yes","options":["8","No","Yes"],"hidden_prop":72240,"weight":10000,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46598469222667,"title":"8 \/ No \/ No","option1":"8","option2":"No","option3":"No","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"cerasonar concrete mini v2 - preorder now - 8 \/ No \/ No","public_title":"8 \/ No \/ No","options":["8","No","No"],"hidden_prop":68145,"weight":10000,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46020582310155,"title":"100V \/ Yes \/ Yes","option1":"100V","option2":"Yes","option3":"Yes","sku":"1218-100","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"cerasonar concrete mini v2 - preorder now - 100V \/ Yes \/ Yes","public_title":"100V \/ Yes \/ Yes","options":["100V","Yes","Yes"],"hidden_prop":93135,"weight":10000,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46598469255435,"title":"100V \/ Yes \/ No","option1":"100V","option2":"Yes","option3":"No","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"cerasonar concrete mini v2 - preorder now - 100V \/ Yes \/ No","public_title":"100V \/ Yes \/ No","options":["100V","Yes","No"],"hidden_prop":89040,"weight":10000,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46598454509835,"title":"100V \/ No \/ Yes","option1":"100V","option2":"No","option3":"Yes","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"cerasonar concrete mini v2 - preorder now - 100V \/ No \/ Yes","public_title":"100V \/ No \/ Yes","options":["100V","No","Yes"],"hidden_prop":82740,"weight":10000,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":46598469288203,"title":"100V \/ No \/ No","option1":"100V","option2":"No","option3":"No","sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"cerasonar concrete mini v2 - preorder now - 100V \/ No \/ No","public_title":"100V \/ No \/ No","options":["100V","No","No"],"hidden_prop":78645,"weight":10000,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

Fresh and unique

concrete mini v2

In the concrete mini v2, we have improved the concrete housing and made it slightly larger. The sound quality has been further improved, especially customised drivers with crossover & protection circuit ensure a full-range sound from a compact enclosure.

Innovative DESIGN & MANUFACTURING

Made in Germany

Thanks to our many years of experience in CAD design and 3D printing, we were able to maximise performance from a small volume. The use of moisture and uv-resistant materials guarantees a long lifespan

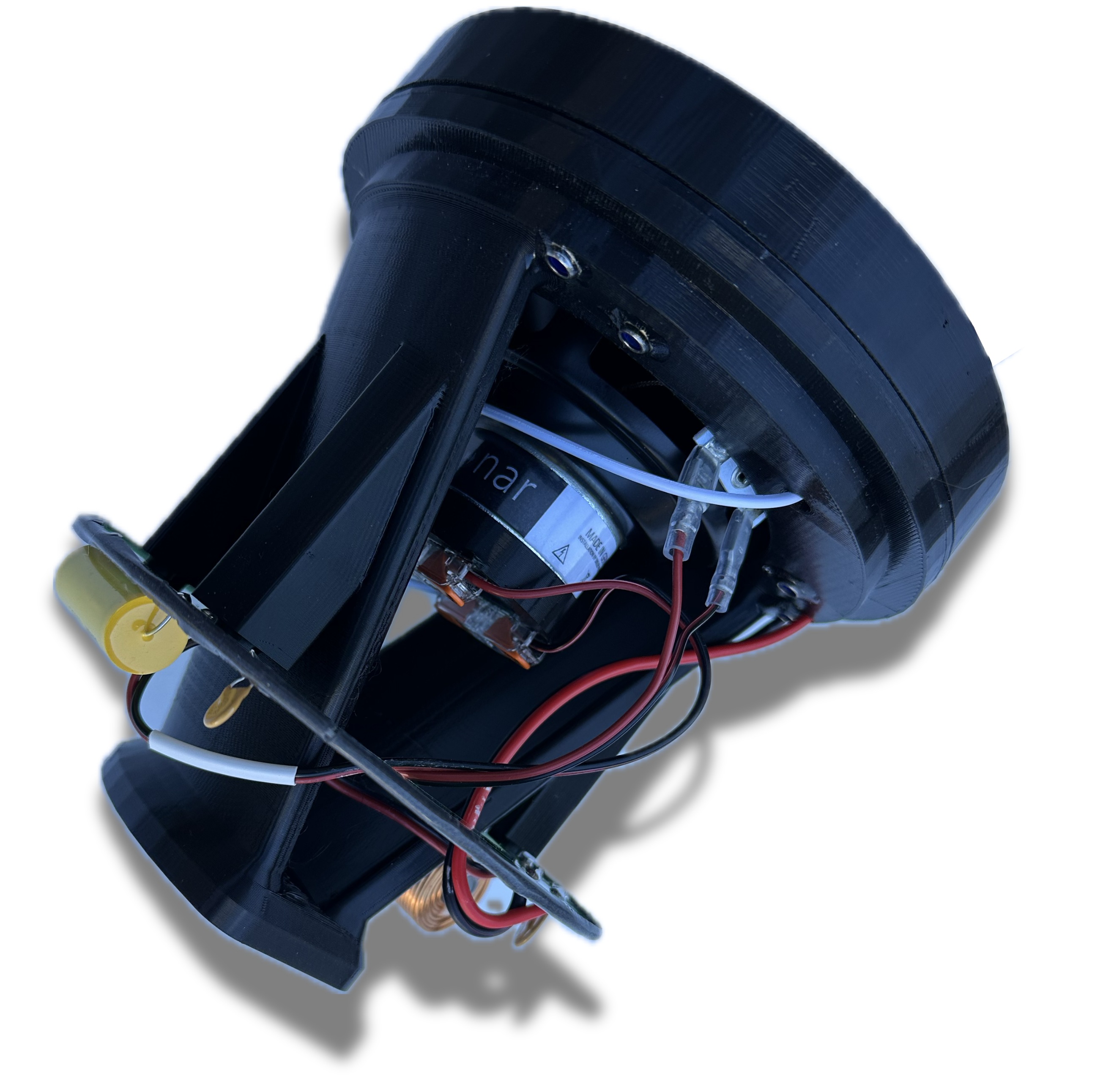

The two long bass reflex channels are tuned to a low frequency and the 4" woofer with very high X-Max delivers astonishing SPL values in the low frequency range. The 1" tweeter is equipped with a waveguide so that the sound is directed straight at the diffuser. A positive side effect is the high electrical crossover frequency, which reduces the load on the tweeter and results in a high power handling capacity.

customised

Each item is an unique piece of art.

The cerasonar concrete products are available in grey (standard), anthracite and white. The top surface is available smooth (standard) or rough. Colour deviations are part of the vivid appearance of the concrete.

video of the first product idea (2023)

fresh and unique

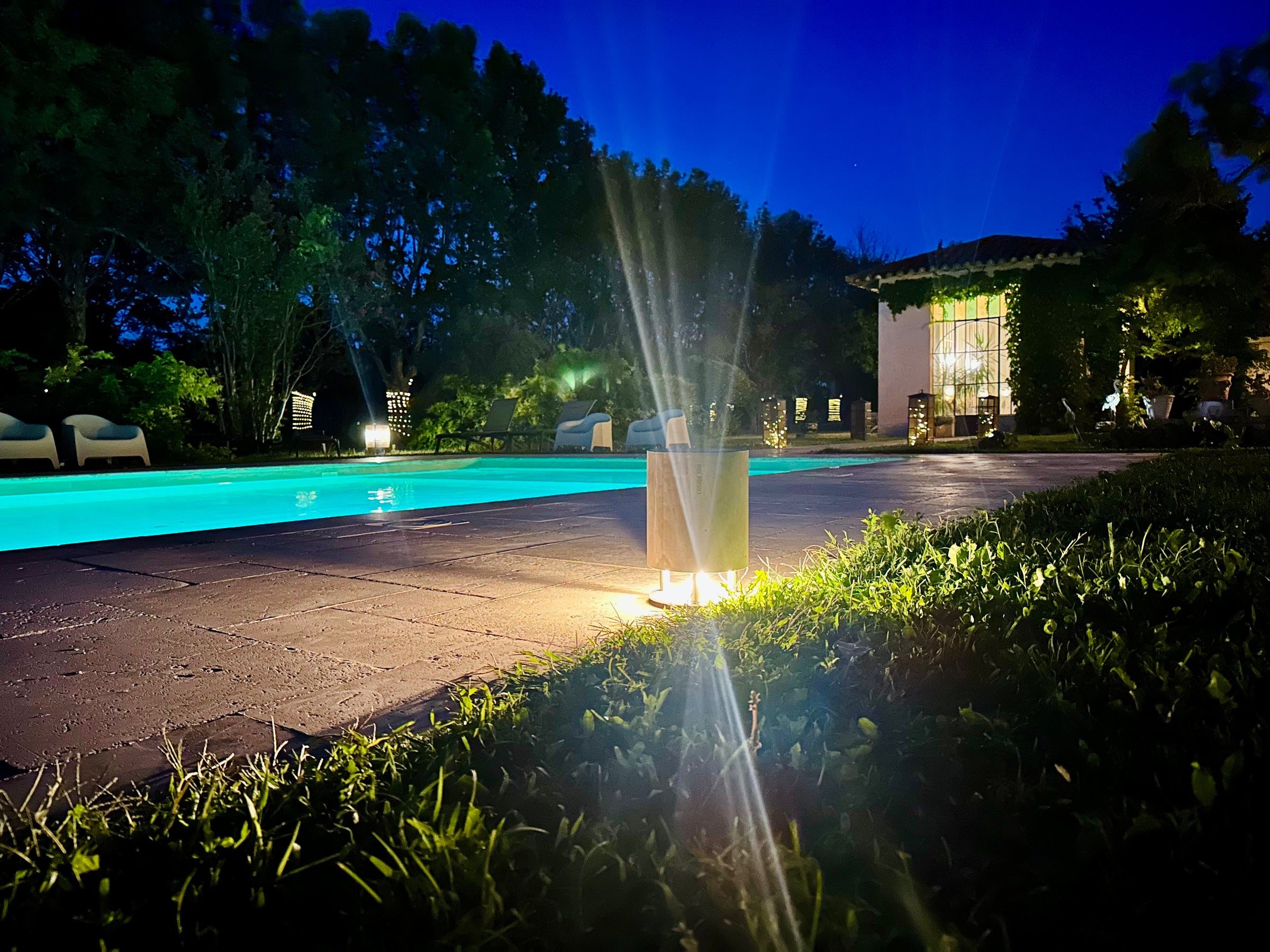

The concrete mini v2 is both speaker and light at the same time. The warm white LED can be connected via 12v or 24v.
