Name: cerasonar 1520 fit - 100v
Brand: cerasonar
SKU: 1270-1
Availability: InStock

€329,64

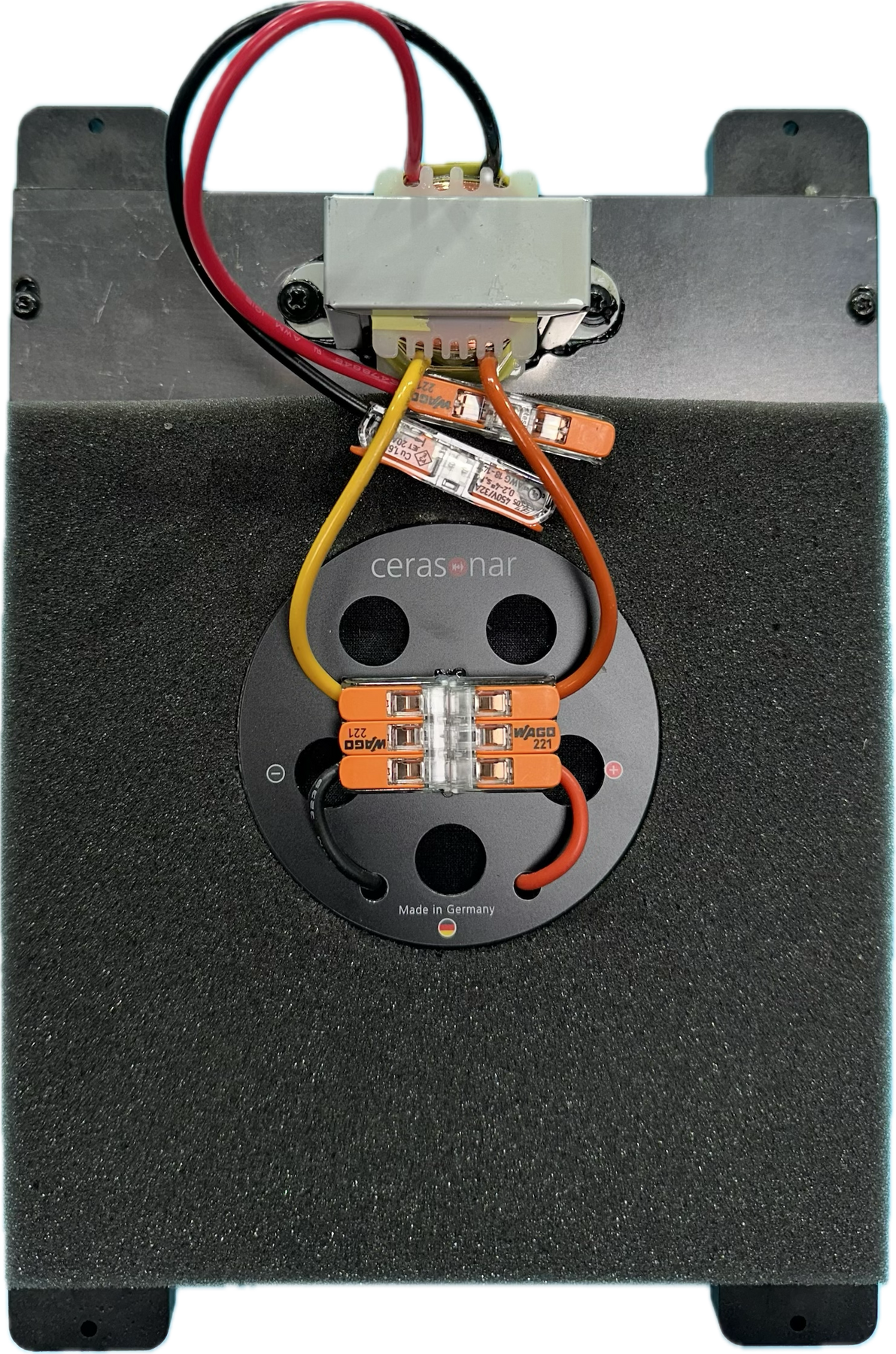

Compact Invisible Loudspeaker with Integrated 100V Line Transformer

The cerasonar 1520 fit - 100V combines the compact dimensions and proven acoustic performance of the 1520 fit with a fully integrated 100V line transformer. Designed specifically for distributed audio systems, it provides a clean, efficient and highly reliable solution for commercial and hospitality installations.

By integrating the line transformer directly into the loudspeaker, no external transformer is required. This significantly simplifies installation, reduces wiring complexity and minimises installation time, making the 1520 fit - 100V an ideal choice for projects with a large number of loudspeakers.

Its compact design allows seamless integration into walls and ceilings while fitting within the installation space typically required for conventional in-wall loudspeakers. The loudspeaker is particularly well suited for hotels, restaurants, retail environments, offices, spa and wellness facilities, cruise ships and other distributed audio applications.

For optimum performance, cerasonar recommends the cs-500dsp4 v2 operating in 100V mode. When used with the dedicated factory DSP preset, the integrated dynamic bass enhancement delivers a significantly richer, more balanced and natural listening experience while maintaining reliable loudspeaker protection.

Alternatively, compatible LEA or Powersoft DSP amplifiers configured for 100V operation may be used, provided the appropriate cerasonar DSP preset is applied.

Important: The cerasonar Protection Unit (PRO) must not be used with this model, as the integrated 100V line transformer is designed for direct operation with suitable 100V amplifier systems.

Power of the connections (100V): 2,5w, 5w, 10w, 15w, 20w
Frequency range: 100 - 18.000 hz*
Frequency range with cerasonar amp: 80 - 20.000 hz*
max SPL: 96 db
Dispersion range: 180° x 180° h./v.
Single stereo mode: no
Drywall: 1-layer 12,5 mm plasterboard only
Installation: place in the centre of the plasterboard to improve bass response
Installation cut out: 20,0 x 16,5 cm
Dimensions: 23,4 x 16,3 x 7,3 cm
Weight: 0,5 kg

* depending on installation situation

cerasonar cs-500dsp4 amp
cerasonar frame/backbox 1520
cerasonar template 1520
cerasonar speaker installation cable

Kaiser Fire-protection housing FlamoX®
Kaiser 9435-03 datasheet - DOWNLOAD

TIP: Use a VKP® BASIC sealing tape or a suitable sealant so that the sheet metal housing is in resonance-free contact with the plastic inner housing.

cerasonar 1520 fit - fullrange
file name: 1270-FR-FRAME
(low bass response below 100 Hz, satelitte preset incl. subwoofer highly recommended!)

cs-500dsp4 v2 - DOWNLOAD
(dynamic bass boost)
cs-2000dsp4 - not available!
LEA - not available!

----------

cerasonar 1520 fit - high pass @ 120 Hz (additional subwoofer required)
file name: 1270-HP-FRAME

cs-500dsp4 v2 - DOWNLOAD
cs-2000dsp4 - DOWNLOAD
LEA - DOWNLOAD

* We recommend using the additionally available installation frame (backbox) for perfect reproduction of the result.

1520 fit - 100v - DOWNLOAD

imagine

you could fill any room with your favourite music

Without any visible wires. With maximum freedom of installation and fascinating sound quality.

FOR SMALL ROOMS

As soon as you enter the room, you are greeted with first-class sound. The easy to install and space-saving models of the cerasonar fit series fill even the smallest room with music and life.

Where conventional loudspeaker solutions mean considerable loss of space and unaesthetic cables, our cerasonar fit series gives you the freedom to unfold yourself in your home.

FOR HUMID ROOMS

Whether in the bathtub, under the morning shower or as live music accompaniment when cooking with friends, you will experience your favourite piece of music all over again.

The cerasonar fit series was designed by us to be moisture-proof down to the smallest detail. It is extremely stable in rooms with high humidity such as bathrooms or swimming pools, spa areas as well as in boats and yachts and guarantees you a very clear and dynamic sound.

Upgrade option

IF YOU LONG FOR AN UPGRADE

Do you dislike the constant dusting of your loudspeakers? Existing, visible in-wall loudspeakers can be removed cleanly, depending on the model, and replaced at any time with an invisible cerasonar series.

The fit series offers you the advantage that it fits precisely into the space of the most common in-wall speakers. Due to the small installation depth it is the right choice for demanding installation situations.

From our customers

★★★★★
I have been very fond of the invisible cerasonar loudspeakers since the beginning of 2015. This is due in part to the crisply honest manner of founder and inventor Ulrich Ranke, but certainly also to the equally honest way of developing loudspeakers that are as close as possible to the original.
Wolfgang Höhne
Dipl.-Ing (FH) Interior Design www.wolfganghoehne.com

★★★★★
As an electrician, I have already installed various invisible cerasonar speakers for customers. The panels can be inserted into the ceiling or wall very quickly and can be trowelled over cleanly. So far, all customers have been very satisfied! I can definitely recommend the company!
Eric Hartje
Electrician in Bremen, Germany

popular in

hotel, tourism and cruise industry

an unforgettable holiday

For your guests

Increase the well-being of your guests on their way to the excursion day, to the spa area or to the evening dinner with music in excellent quality.Despite its small size, the cerasonar fit series delivers an outstandingly harmonious sound, which is particularly popular in the hotel, tourism and cruise industry for background sound reinforcement.

Flexibly combinable with 70 and 100 Volt transformer systems, our smallest series takes every opportunity to give your guests an unforgettable stay.

fit series

how to | install

YOUTUBE LINK

100 percent customer satisfaction

Our service includes a 5-year warranty. Our product liability insurance (only valid in Germany) in cooperation with AachenMünchener provides protection against property damage and bears the full costs for a possible restoration. A prerequisite is the registration with us in our company. Each of our cerasonar loudspeakers comes with comprehensive, easy-to-understand installation instructions in picture and video format, which even makes subsequent installation in existing walls extremely easy.
