Name: cerasonar drywall ceiling kit
Brand: cerasonar
SKU: 1335
Availability: InStock

€129,00

suitable for:

frame 4062 (1520&2525 as well!)

frame 4080

frame 6062

frame 6280

Suitable for drywall ceiling installation: (for cerasonar frame)

o Align the frame flush with the wall or ceiling plasterboard
o Installation battens with drive-in nuts and screws
o Frame comes with pre-drilled holes for easy & fast installation

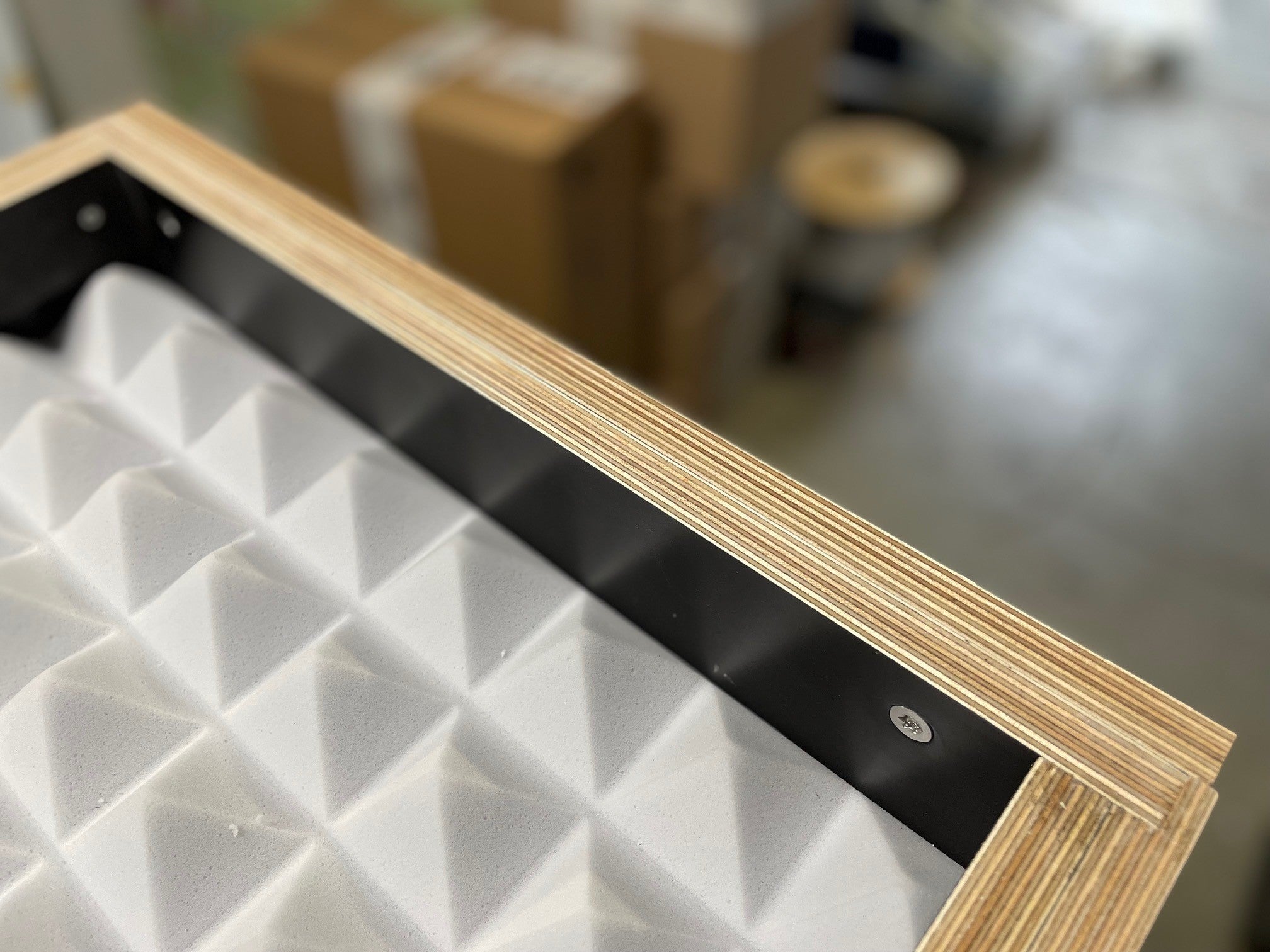

o Made out of 21 mm plywood screen printing plate

The cerasonar drywall ceiling kit is suitable for installing the frame
flush in the ceiling quickly and easily.

Make a cut-out in the plasterboard, +3 mm for easier handling (e.g. 4062 reference (pro) it is 403 mm x 623 mm)

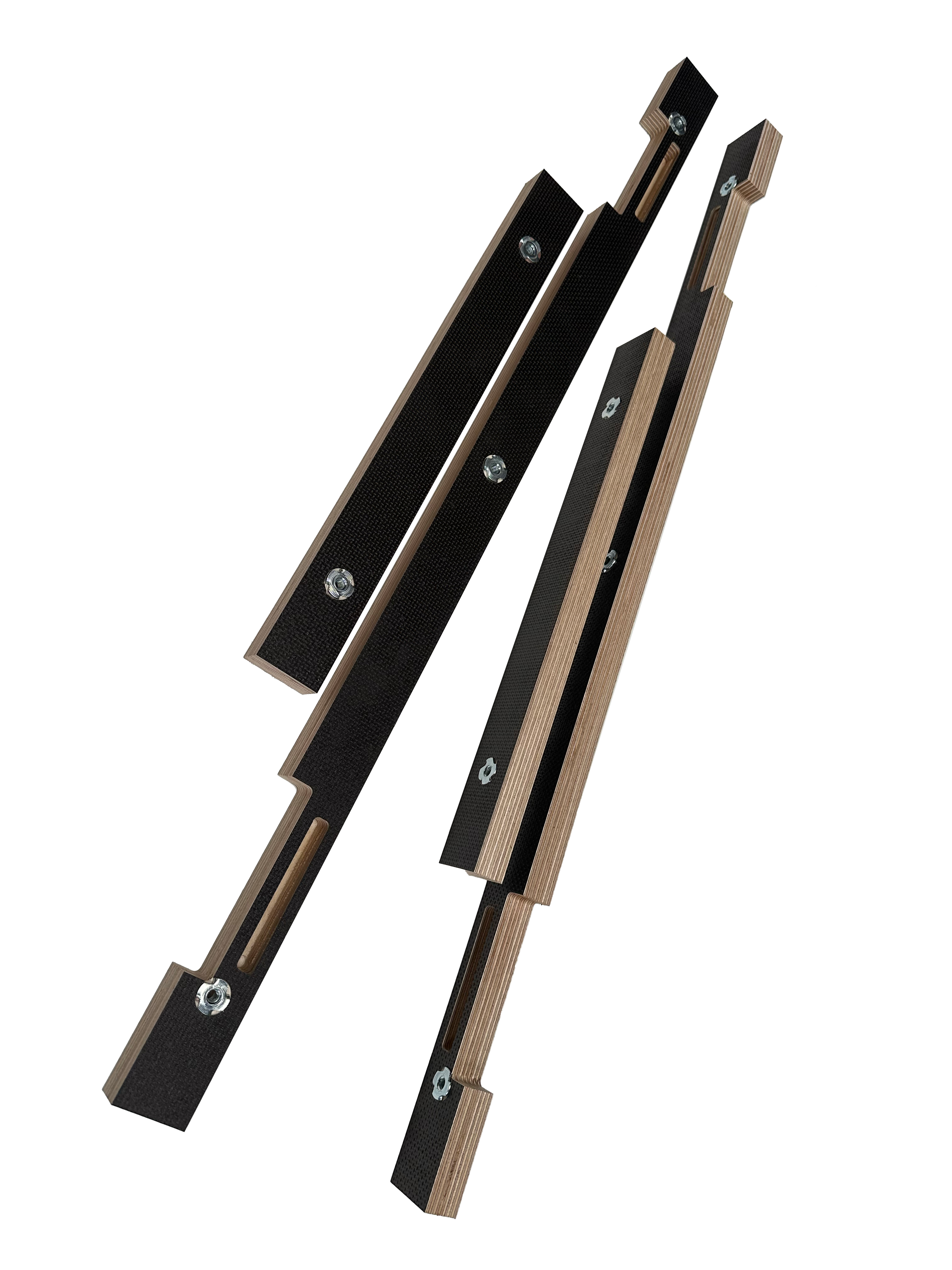

Mount the two long wooden slats (M6 Torx screws)
Feed the speaker cable into the backbox

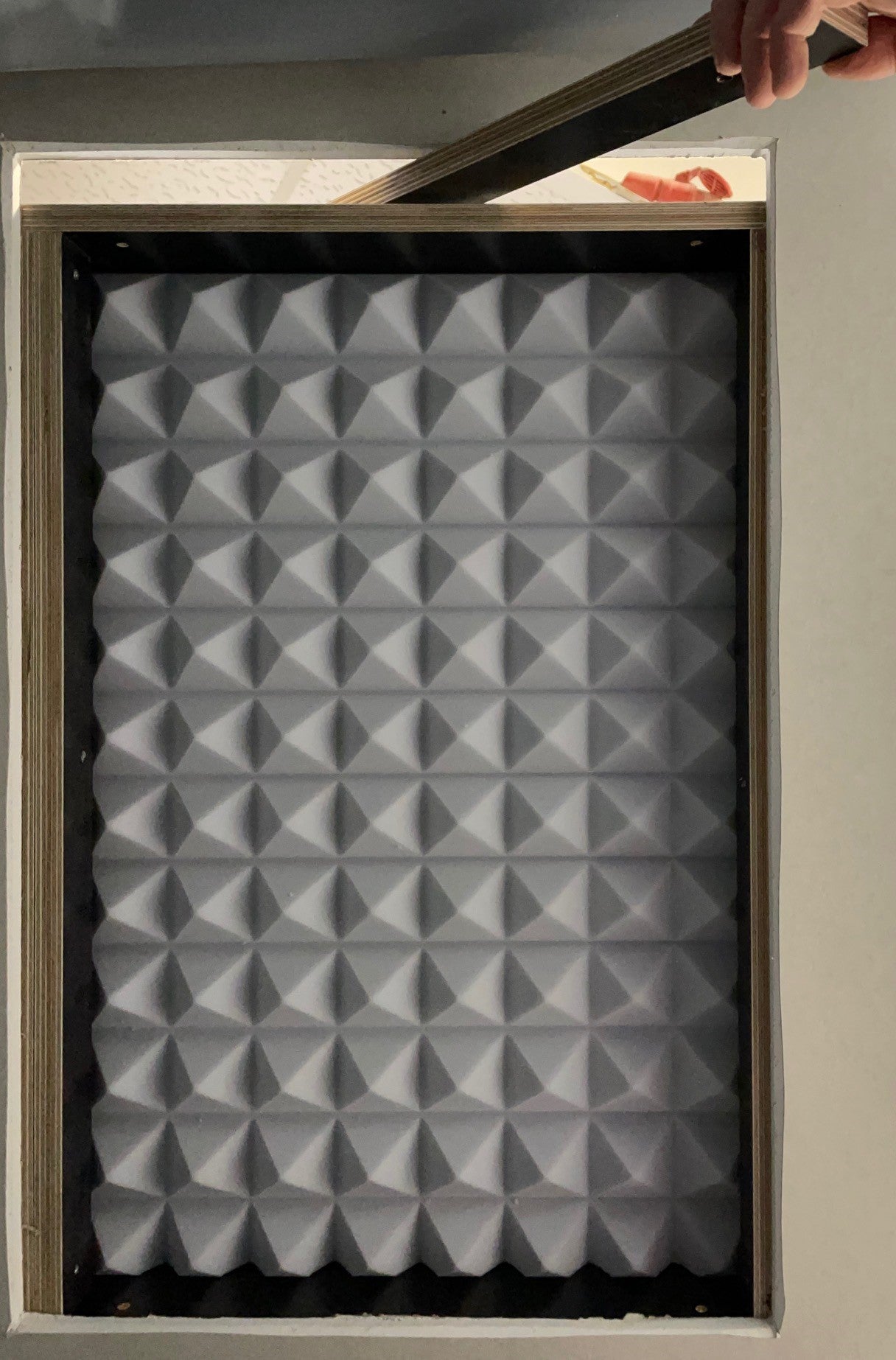

Guide the installation frame (backbox) at an angle into the ceiling or wall
(picture 3)
Mount two additional wooden slats (M6 Torx screws)
(picture 4, 5, 6)

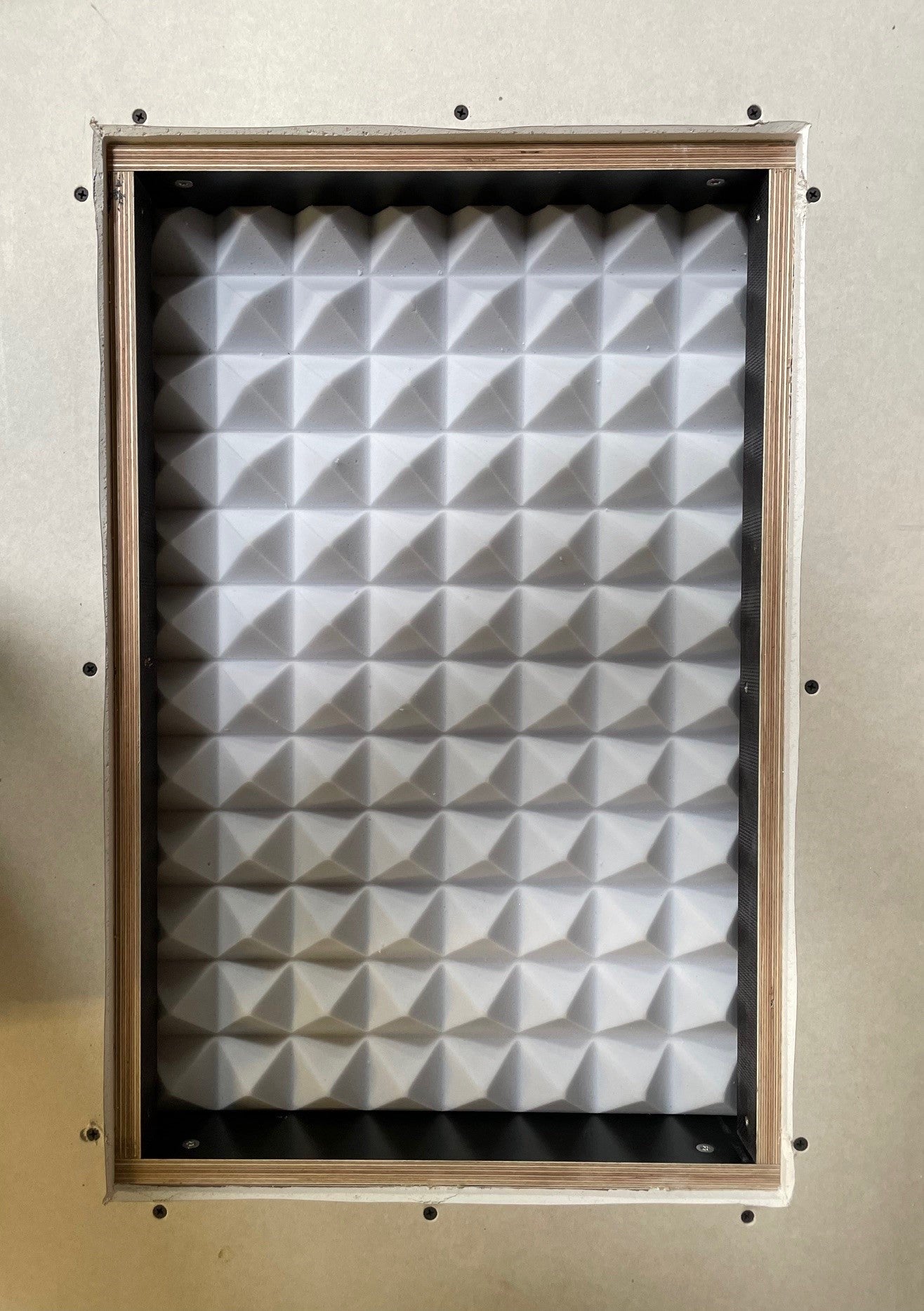

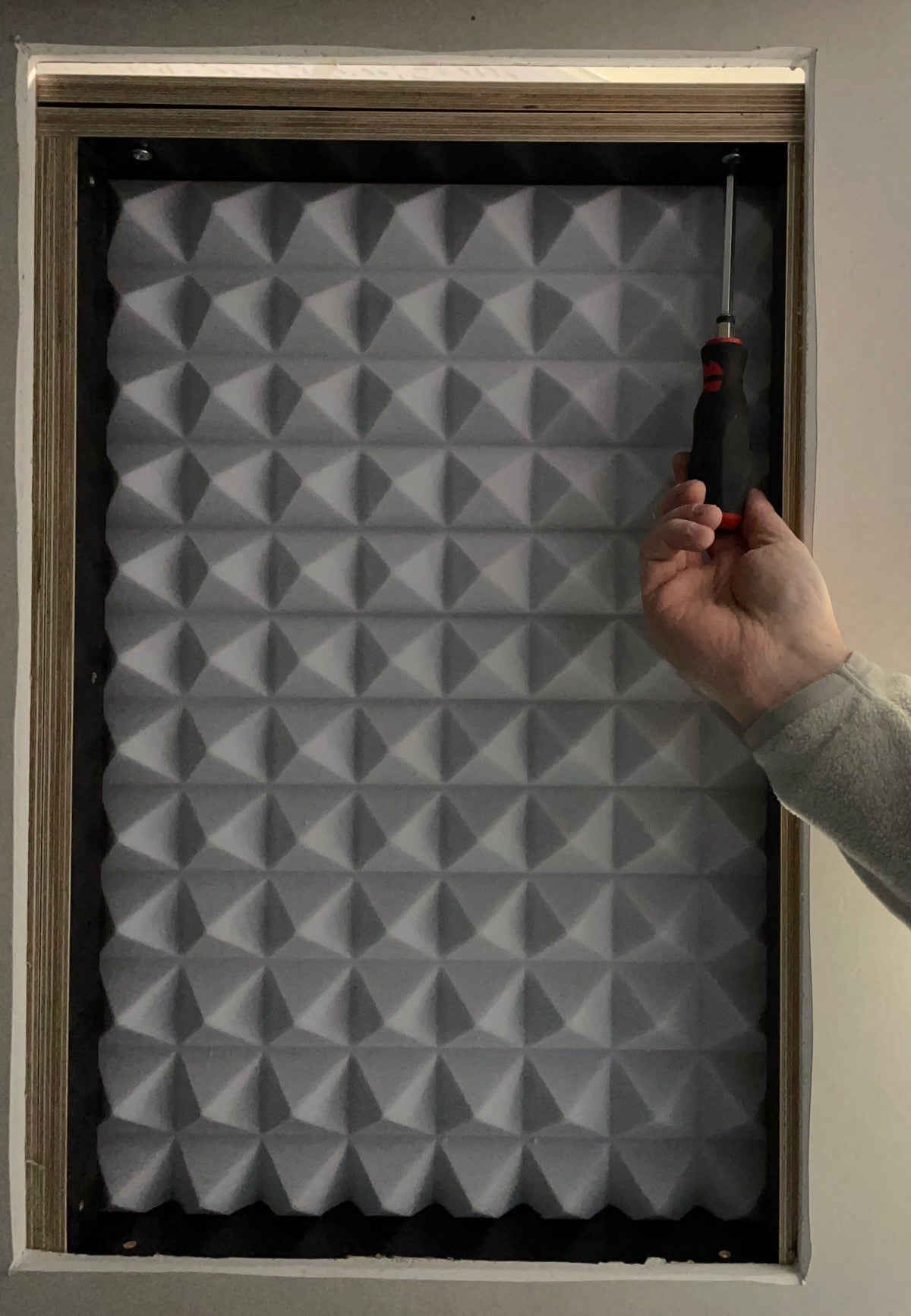

Align the backbox in the centre of the plasterboard cut-out and then secure with sufficient screws
(picture 7, 8)
Now mount the speaker

ATTENTION: The stability of the ceiling and the plasterboard must be
checked and, if necessary, reinforcing batten(s) must be screwed to
the substructure and the frame (screw must not penetrate more than
14 mm into the wood) or, alternatively, the additional cerasonar
drywall ceiling anti-vibration kit can be used.
