cerasonar 1520 fit - 100v
cerasonar 1520 fit - 100v
cerasonar 1520 fit - 100v
cerasonar 1520 fit - 100v

cerasonar 1520 fit - 100v

€313,95
/

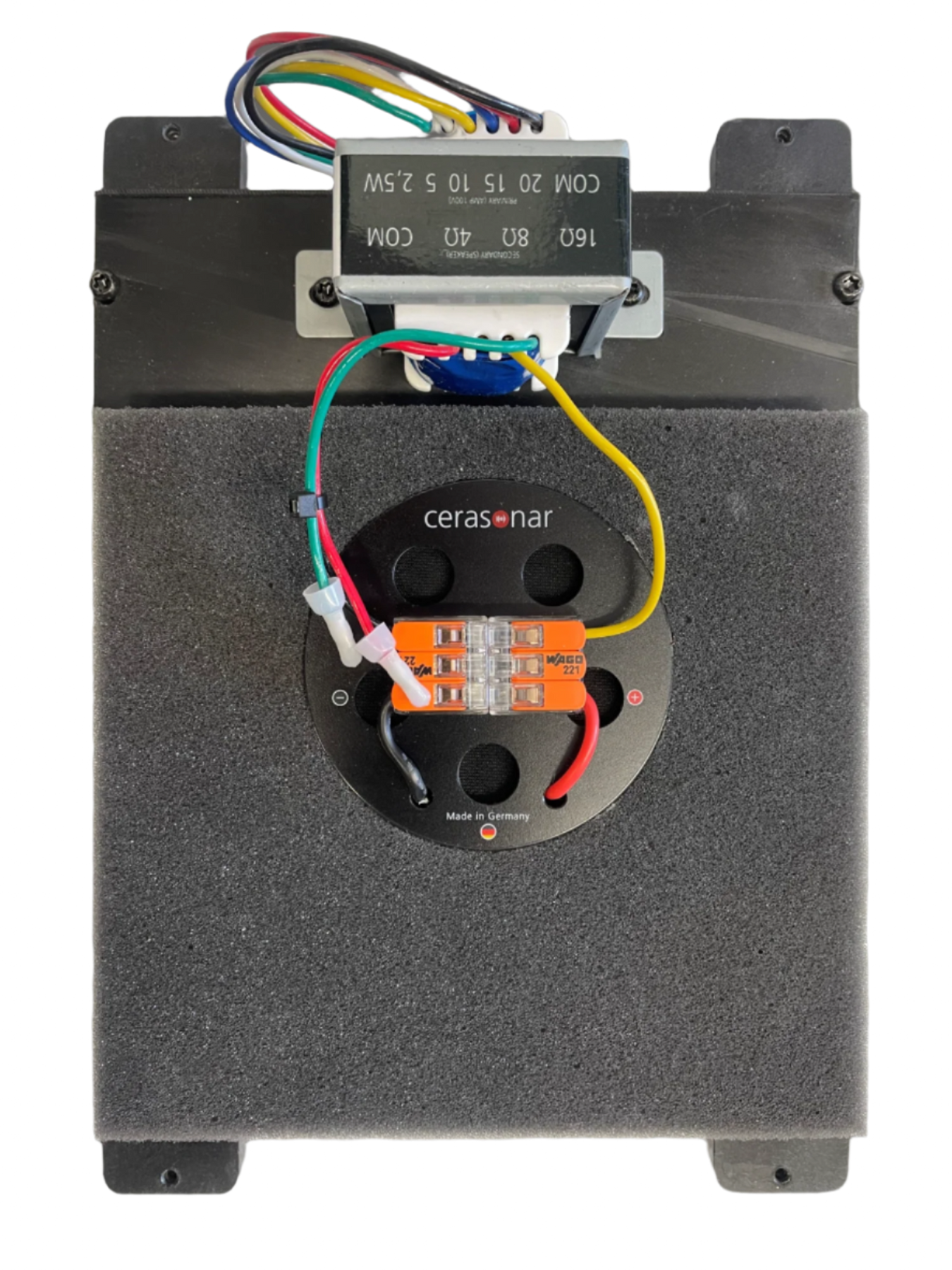

基于陶瓷 1520 fit, 的基础上，该版本配备了一个 100 伏线路变压器。功率设置从 2.5w 到 20w 不等。cerasonar 的最大优点是 1520 fit - 100v 的最大优点是安装极为简单，因为 100v 变压器已经安装在扬声器上。

请注意，我们建议使用 cs-500dsp4 V2 放大器（100V 模式）。结合专用的 dsp 预置，动态低音增强功能将被激活，从而产生非常和谐的音效。

  • 连接功率（100V）：2.5瓦、5瓦、10瓦、15瓦、20瓦
  • 频率范围100 - 18.000 赫兹
  • 带陶瓷放大器的频率范围80 - 20.000 赫兹
  • 最大声压级：96 分贝
  • 扩散范围180° x 180° h./v.
  • 单立体声模式：无
  • 干墙仅 1 层 12.5 毫米石膏板
  • 安装：放置在石膏板中央，以改善低音响应
  • 安装开口：20.0 x 16.5 厘米
  • 尺寸：23.4 x 16.3 x 7.3 厘米23.4 x 16.3 x 7.3 厘米
  • 重量：0.5 千克

* 视安装情况而定

  • 陶瓷 cs-500dsp4 放大器
  • 陶瓷框架/背箱 1520
  • 陶瓷 template 1520
  • cerasonar speaker installation cable
cad 绘图 Cerasonar 1520 适合

cerasonar 1520 fit - fullrange
file name: 1270-FR-FRAME
(low bass response below 100 Hz, satelitte preset incl. subwoofer highly recommended!)

  • cs-500dsp4 v2 - DOWNLOAD
  • cs-2000dsp4 - DOWNLOAD

----------

cerasonar 1520 fit - high pass @ 120 Hz (additional subwoofer required)
file name: 1270-HP-FRAME

  • cs-500dsp4 v2 - DOWNLOAD
  • cs-2000dsp4 - DOWNLOAD

* We recommend using the additionally available installation frame (backbox) for perfect reproduction of the result.

imagine

you could fill any room with your favourite music

Without any visible wires. With maximum freedom of installation and fascinating sound quality.

FOR SMALL ROOMS

As soon as you enter the room, you are greeted with first-class sound. The easy to install and space-saving models of the cerasonar fit series fill even the smallest room with music and life.

Where conventional loudspeaker solutions mean considerable loss of space and unaesthetic cables, our cerasonar fit series gives you the freedom to unfold yourself in your home.

FOR HUMID ROOMS

Whether in the bathtub, under the morning shower or as live music accompaniment when cooking with friends, you will experience your favourite piece of music all over again.

The cerasonar fit series was designed by us to be moisture-proof down to the smallest detail. It is extremely stable in rooms with high humidity such as bathrooms or swimming pools, spa areas as well as in boats and yachts and guarantees you a very clear and dynamic sound.

Upgrade option
IF YOU LONG FOR AN UPGRADE

Do you dislike the constant dusting of your loudspeakers? Existing, visible in-wall loudspeakers can be removed cleanly, depending on the model, and replaced at any time with an invisible cerasonar series.

The fit series offers you the advantage that it fits precisely into the space of the most common in-wall speakers. Due to the small installation depth it is the right choice for demanding installation situations.

From our customers

★★★★★

I have been very fond of the invisible cerasonar loudspeakers since the beginning of 2015. This is due in part to the crisply honest manner of founder and inventor Ulrich Ranke, but certainly also to the equally honest way of developing loudspeakers that are as close as possible to the original.

Wolfgang Höhne

Dipl.-Ing (FH) Interior Design www.wolfganghoehne.com

★★★★★

As an electrician, I have already installed various invisible cerasonar speakers for customers. The panels can be inserted into the ceiling or wall very quickly and can be trowelled over cleanly. So far, all customers have been very satisfied! I can definitely recommend the company!

Eric Hartje

Electrician in Bremen, Germany

popular in

hotel, tourism and cruise industry

an unforgettable holiday
For your guests

Increase the well-being of your guests on their way to the excursion day, to the spa area or to the evening dinner with music in excellent quality.Despite its small size, the cerasonar fit series delivers an outstandingly harmonious sound, which is particularly popular in the hotel, tourism and cruise industry for background sound reinforcement.

Flexibly combinable with 70 and 100 Volt transformer systems, our smallest series takes every opportunity to give your guests an unforgettable stay.

fit series

how to | install
YOUTUBE LINK

100 percent customer satisfaction

Our service includes a 5-year warranty. Our product liability insurance (only valid in Germany) in cooperation with AachenMünchener provides protection against property damage and bears the full costs for a possible restoration. A prerequisite is the registration with us in our company. Each of our cerasonar loudspeakers comes with comprehensive, easy-to-understand installation instructions in picture and video format, which even makes subsequent installation in existing walls extremely easy.
