1256

€695,07
/

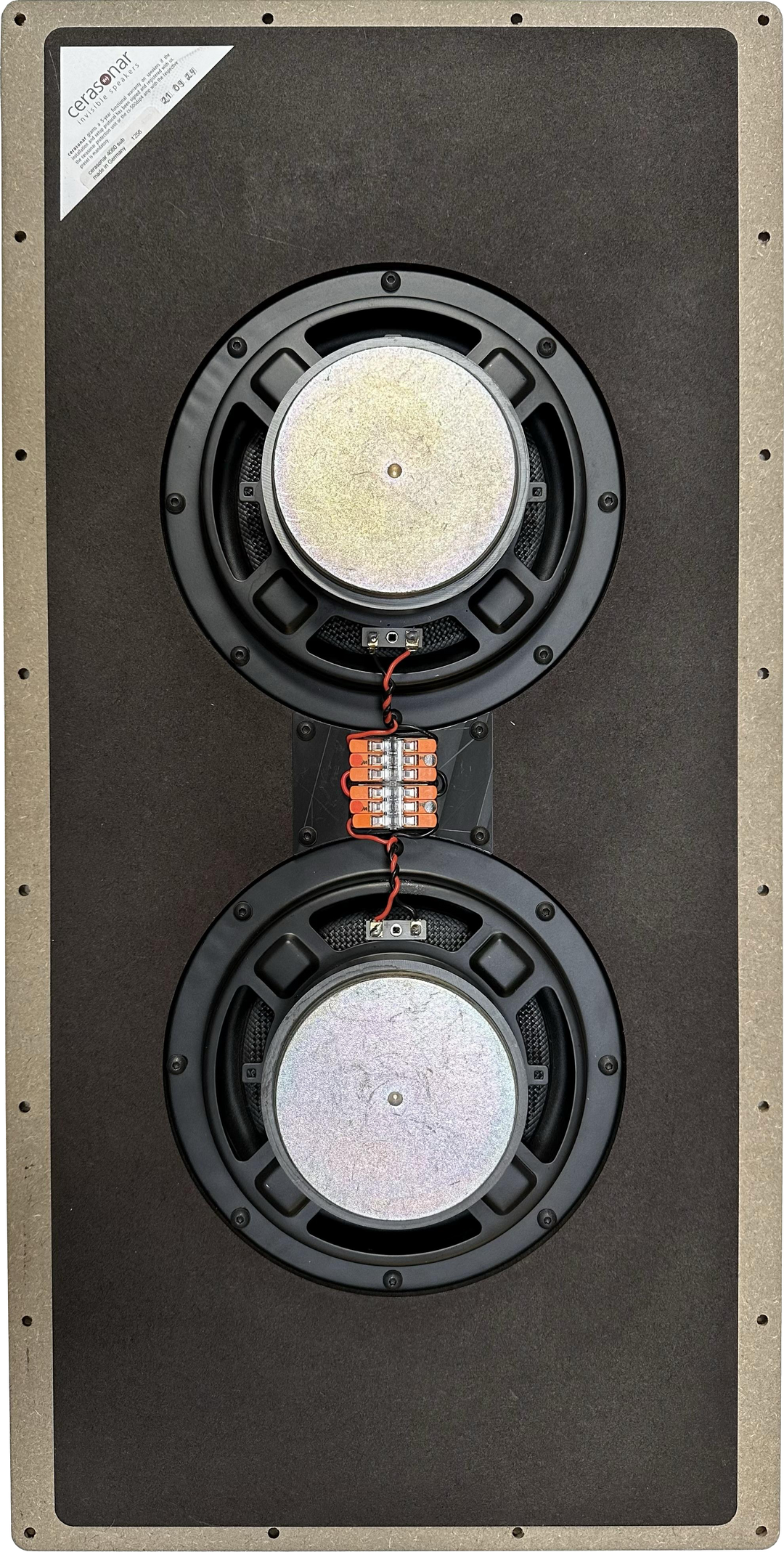

Invisible Subwoofer – 150 W RMS / Dual 8"

The cerasonar 4080 sub has been developed as the ideal low-frequency extension for the cerasonar loudspeaker portfolio. Combining two custom-developed 8-inch long-excursion woofers with a compact installation format, it delivers deep, controlled bass while preserving the completely invisible appearance of the installation.

Specifically engineered for architectural audio applications, the 4080 sub provides excellent impulse response, low distortion and seamless integration with cerasonar invisible loudspeakers. The result is greater dynamic headroom, extended low-frequency performance and a remarkably natural full-range listening experience without compromising interior design.

The 4080 sub is the recommended system extension for the 1520 fit, 2525 fit, 4062 reference, 4062 reference pro, 12030 reference pro and 4080 ultimate. It is ideally suited for premium stereo systems, multi-room audio, hospitality projects and residential installations where greater bass extension, increased dynamics and enhanced musical realism are desired.

For larger rooms, dedicated home cinema installations or projects requiring substantially higher sound pressure levels, cerasonar recommends the 6280 sub. Where uncompromising reference-level bass performance is required, the 62200 sub represents the ultimate invisible low-frequency solution for flagship stereo systems and high-end home cinema installations.

For optimum performance, the cerasonar factory DSP preset has been specifically developed for the 4080 sub, optimising system integration, extending low-frequency performance, activating the proprietary Dynamic Bass Enhancement and providing reliable loudspeaker protection.

The cerasonar factory DSP preset is available for the cerasonar cs-500dsp4 DSP amplifier, the cerasonar cs-2000dsp4 DSP amplifier as well as compatible DSP amplifiers from LEA Professional and Powersoft, allowing seamless integration into a wide variety of residential and commercial audio systems.

  • Power rating: 150 w RMS (300 w max)
  • Impedance: 8 ohms / 2x 4 ohms
  • Frequency range: 60 - 20.000 hz*
  • Frequency range with cerasonar amp: 40 - 20.000 hz*
  • max SPL: 110 db
  • Dispersion range: 180° x 180° h./v.
  • Single stereo mode: yes
  • for humid environments: no
  • Drywall: 1- or 2-layered 12,5 mm plasterboard
  • Installation cut out: 57,0 x 75,0 cm
  • Dimensions: 62,0 x 80,0 x 5,8 cm
  • Weight: 3,2 kg

* depending on installation situation

  • cerasonar cs-150smart2 amp
  • cerasonar cs-500dsp4 amp
  • cerasonar cs-2000dsp4 amp
  • cerasonar frame/backbox 6280
  • cerasonar placeholder 6280
  • cerasonar speaker installation cable

cerasonar 6280 reference pro - fullrange
file name: 1263-1-FR-FRAME

  • cs-500dsp4 v2 - DOWNLOAD
    (dynamic bass boost)
  • cs-2000dsp4 - DOWNLOAD
  • LEA - DOWNLOAD

----------

cerasonar 6280 reference pro - high pass @ 100 Hz (additional subwoofer required)
file name: 1263-1-HP-FRAME

* We recommend using the additionally available installation frame (backbox) for perfect reproduction of the result!

6280 reference pro - DOWNLOAD

INVISIBLE SUBWOOFER SERIES

INVISIBLE BASS. DESIGNED FOR EVERY PROJECT.

From compact residential installations to flagship reference home cinema and vibration-sensitive architectural applications, the cerasonar invisible subwoofer series offers the right solution for every invisible loudspeaker system.

FOUR SUBWOOFER CONCEPTS. ONE COMPLETELY INVISIBLE SYSTEM APPROACH.

Explore the series Compare the models
cerasonar 4080 sub

4080 sub

Compact invisible bass for fit series and 4080 ultimate systems.

ULTIMATE series Fit series Completely invisible
cerasonar 6280 sub

6280 sub

Recommended extension for reference pro stereo and home cinema systems.

Reference pro series Completely invisible
cerasonar 62200 sub

62200 sub

Maximum output for uncompromising reference and home cinema installations.

6280 reference pro Flagship
cerasonar architect sub

architect sub

Vibration-conscious bass solution for sensitive wall and ceiling constructions.

All series Low vibration
INVISIBLE SUBWOOFER SERIES

THE RIGHT INVISIBLE SUBWOOFER FOR EVERY SYSTEM.

The cerasonar invisible subwoofer family covers compact residential installations, premium stereo systems, reference home cinema and vibration-sensitive architectural projects. Every model is engineered for seamless integration with invisible loudspeaker systems while addressing different installation and performance requirements.

01

COMPACT SYSTEMS

The 4080 sub is the recommended extension for fit series and 4080 ultimate installations, delivering clean and controlled low frequencies from a compact invisible design.

02

REFERENCE PERFORMANCE

The 6280 sub complements the reference pro series with greater output capability and deeper bass extension for demanding stereo and home cinema applications.

03

FLAGSHIP LOW FREQUENCIES

The 62200 sub represents the highest performance level within the invisible subwoofer family, developed for uncompromising reference installations and flagship home cinema projects.

04

LOW VIBRATION INSTALLATION

The architect sub is designed for vibration-sensitive constructions and is recommended whenever lightweight walls, metal framing or demanding architectural projects require reduced structure-borne vibration.

FOUR INVISIBLE SUBWOOFERS. ONE CONSISTENT SYSTEM PHILOSOPHY FOR EVERY CERASONAR INSTALLATION.

cerasonar invisible subwoofer series
MODEL COMPARISON

CHOOSE THE RIGHT
INVISIBLE SUBWOOFER.

Compare the four cerasonar invisible subwoofer concepts by system match, output capability, installation requirements and project application.

MODEL 4080 SUB 6280 SUB 62200 SUB ARCHITECT SUB
Best for Stereo, multiroom and compact residential systems Premium stereo, larger rooms and home cinema Flagship stereo and reference home cinema Vibration-sensitive architectural installations
Recommended speaker fit series
4080 ultimate 		reference pro series 6280 reference pro All cerasonar series
Low-frequency output
Compact format ✓ ✕ ✕ ✓
invisible surface ✓ ✓ Discreet bass outlet Paintable vent
Low-vibration ✕ ✕ ✕ ✓
Stereo and multiroom ✓ ✓ ✓ ✓
Home cinema Compact systems ✓ ✓ Construction dependent
Large-room capability ✕ ✓ ✓ Project dependent
Factory DSP preset ✓ ✓ ✓ ✓
Core advantage Compact and completely invisible bass extension Reference-level output with complete invisibility Maximum low-frequency authority and scale Reduced structure-borne vibration in sensitive constructions

CHOOSE THE SUBWOOFER AROUND THE LOUDSPEAKER SERIES, THE ROOM, THE REQUIRED OUTPUT AND THE SURROUNDING CONSTRUCTION.

cerasonar invisible subwoofer series
SINCE 2011
INVISIBLE AUDIO EXPERTISE
35+
COUNTRIES WORLDWIDE
DIRECT
FACTORY SUPPORT

reference (pro) series

how to | install
YOUTUBE LINK
INSTALLATION ACCESSORIES

PRECISE INSTALLATION. CONSISTENT RESULTS.

Dedicated installation frames support accurate positioning, stable mounting and controlled installation conditions for the completely invisible 4080 sub and 6280 sub.

MATCHED INSTALLATION FRAMES

Purpose-designed frames are available for the 4080 sub and 6280 sub, creating a defined mounting environment for each model.

ACCURATE POSITIONING

Matching dimensions support precise placement and simplify coordination between installers, drywall contractors and finishing trades.

PREDICTABLE SYSTEM PERFORMANCE

Defined installation conditions help maintain consistent mechanical and acoustic performance across different projects.

Discover installation frames
cerasonar installation frames for invisible subwoofers

MATCHED INSTALLATION FRAMES SUPPORT PRECISE POSITIONING, STABLE MOUNTING AND PREDICTABLE SYSTEM PERFORMANCE.

cerasonar invisible subwoofer series
CERASONAR DSP AMPLIFIERS

MATCHED DSP CONTROL FOR EVERY SUBWOOFER SYSTEM.

Dedicated subwoofer channels require sufficient amplifier power, precise crossover control and the correct factory-designed DSP preset. The cs-500dsp4 supports flexible residential systems, while the cs-2000dsp4 provides the power reserves required for demanding and flagship installations.

TWO DSP AMPLIFIERS. FOUR SUBWOOFER CONCEPTS. ONE MATCHED SYSTEM APPROACH.

cerasonar cs-500dsp4

cs-500dsp4

Flexible four-channel DSP amplification for compact, premium and vibration-sensitive invisible subwoofer systems.

4080 sub 6280 sub architect sub
Discover amplifier

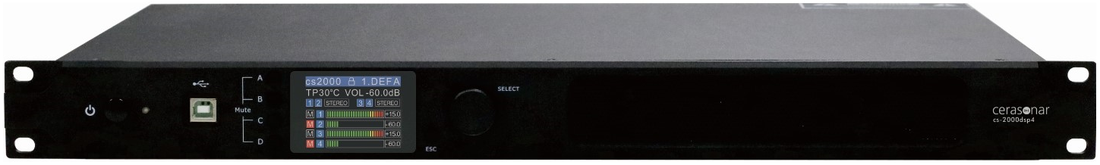

cerasonar cs-2000dsp4

cs-2000dsp4

High-power four-channel DSP amplification for greater system headroom, demanding installations and maximum low-frequency output.

All subwoofers 62200 sub Maximum output
Discover amplifier
SYSTEM PLANNING

PLAN YOUR
DSP CHANNELS.

Every cerasonar invisible subwoofer is designed to achieve its optimum performance with a dedicated DSP amplifier configuration. The overview below simplifies amplifier selection, channel planning, wiring and installation recommendations for every model.

SUBWOOFER DSP AMP AMP CHANNELS WIRING CONFIG
4080 sub cs-500dsp4
cs-2000dsp4 		1 channel Uses a single amplifier channel with the factory-designed DSP preset. Ideal for stereo, multiroom and compact invisible audio systems.
6280 sub cs-500dsp4 4 channels Bridge amplifier channels 1 & 2 to voice coil A and amplifier channels 3 & 4 to voice coil B. All four amplifier channels are dedicated to one subwoofer for maximum output and control.
6280 sub cs-2000dsp4 1 channel Connect both 8 Ω voice coils in parallel to create a 4 Ω load. The complete subwoofer is then driven from a single amplifier channel.
architect sub cs-500dsp4
cs-2000dsp4 		1 channel Uses a standard single-channel configuration and is recommended where vibration transfer to lightweight or metal constructions should be minimised.
62200 sub cs-2000dsp4 only 4 channels Bridge amplifier channels 1 & 2 to connection A and amplifier channels 3 & 4 to connection B. All four amplifier channels are dedicated to one subwoofer for maximum output and control.
INSTALLER NOTE

All amplifier configurations shown above are based on the recommended cerasonar DSP presets for optimum performance and system protection. Installation frames are recommended for selected models where a defined mounting environment supports predictable acoustic results.

PLAN THE SUBWOOFER, DSP CHANNELS, WIRING AND INSTALLATION CONDITIONS AS ONE COMPLETE SYSTEM.

cerasonar invisible subwoofer series
TYPICAL SYSTEM CONFIGURATIONS

BUILD THE SYSTEM
AROUND THE ROOM.

The examples below illustrate common cerasonar system configurations. Larger projects can easily be expanded by adding further loudspeakers, subwoofers and DSP amplifiers.

Hotel corridor audio

20 × 1520 fit – 100V, distributed across two bridged 100V amplifier outputs with 10 loudspeakers per output, all powered by one cs-500dsp4. A highly cost-efficient solution for hotel corridors, office buildings and other projects requiring a large number of evenly distributed loudspeakers, simple 100V cabling and consistent sound coverage.

Commercial audio system

6 × 2525 fit, with two loudspeakers connected in series per channel across three amplifier channels, plus 1 × 4080 sub on the fourth channel, all powered by one cs-500dsp4. A versatile and cost-effective combination for commercial spaces requiring even sound coverage and additional low-frequency performance.

Streaming & TV audio

2 × 4062 reference pro powered by one cs-150smart2 with HDMI ARC, integrated streaming and dedicated DSP presets. A compact all-in-one solution for music and immersive TV audio with invisible loudspeakers. The system can be expanded with 1 × 6280 sub powered by one cs-500dsp4, taking low-frequency performance to an entirely different level.

High-performance stereo

2 × 6280 reference pro together with 2 × 6280 sub, all powered by a single cs-2000dsp4. A complete high-performance stereo system with exceptional dynamics and powerful, controlled bass.

Reference home cinema

7 × 6280 reference pro powered by two cs-2000dsp4 amplifiers, plus 1 × 62200 sub powered by one dedicated cs-2000dsp4. Designed for uncompromising home cinema installations with dedicated amplification for both the loudspeaker system and the flagship 62200 sub.

NEED HELP PLANNING YOUR SYSTEM?

The cerasonar engineering team can assist with amplifier sizing, channel planning and system configuration for residential, commercial and home cinema projects.
