cerasonar 4062 architect v2
1275
Ultra-Slim Invisible Loudspeaker – 4 Ohm

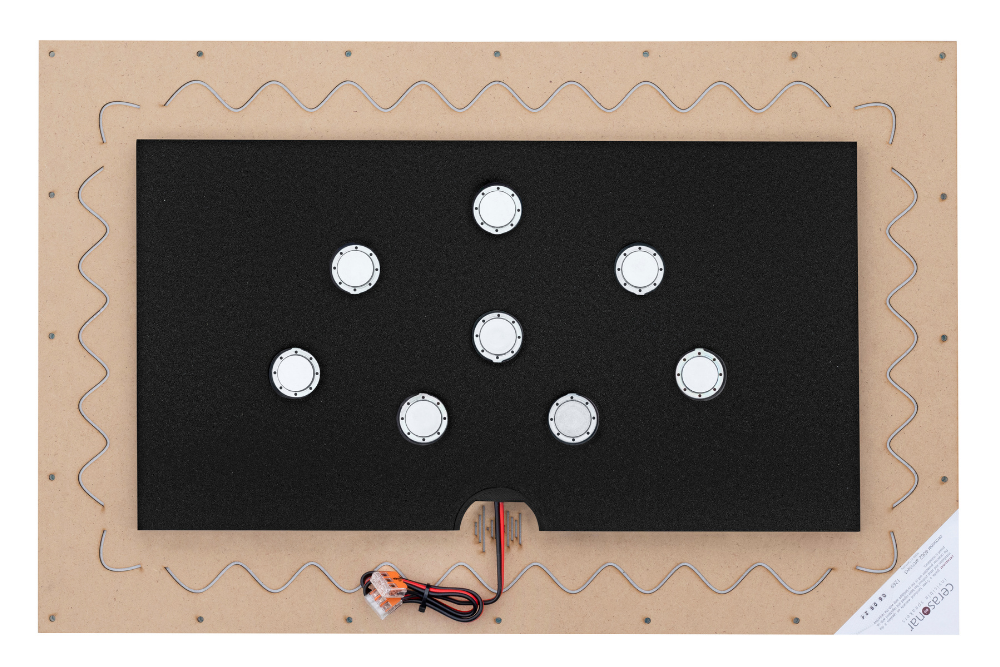

The cerasonar 4062 architect has been developed for architectural projects where installation depth is extremely limited, yet premium invisible audio performance is still required. With an installation depth of only 30 mm, it enables completely invisible audio integration in situations where conventional invisible loudspeakers simply cannot be installed.

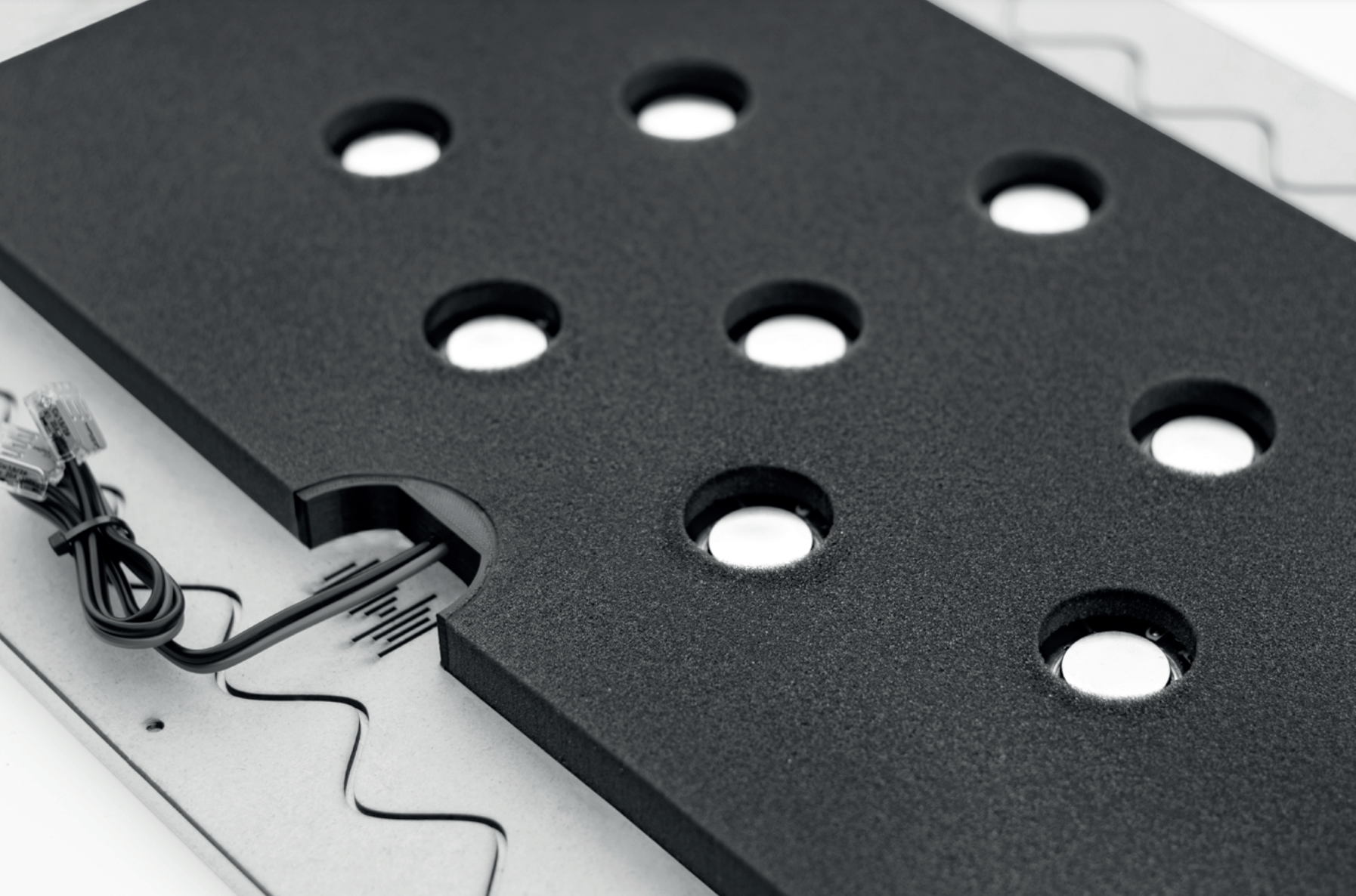

Its innovative design utilises eight ultra-flat exciters to deliver wide sound dispersion, excellent speech intelligibility and remarkably natural music reproduction despite its exceptionally slim construction. The 4062 architect is particularly well suited for renovation projects, shallow wall and ceiling constructions, bespoke furniture and architectural applications where every millimetre of installation depth matters.
Due to its ultra-slim design, the 4062 architect has been engineered as part of a complete loudspeaker system. While it delivers excellent performance for background music on its own, a dedicated invisible subwoofer is recommended for applications where full-range music reproduction, higher playback levels or home cinema performance are required.

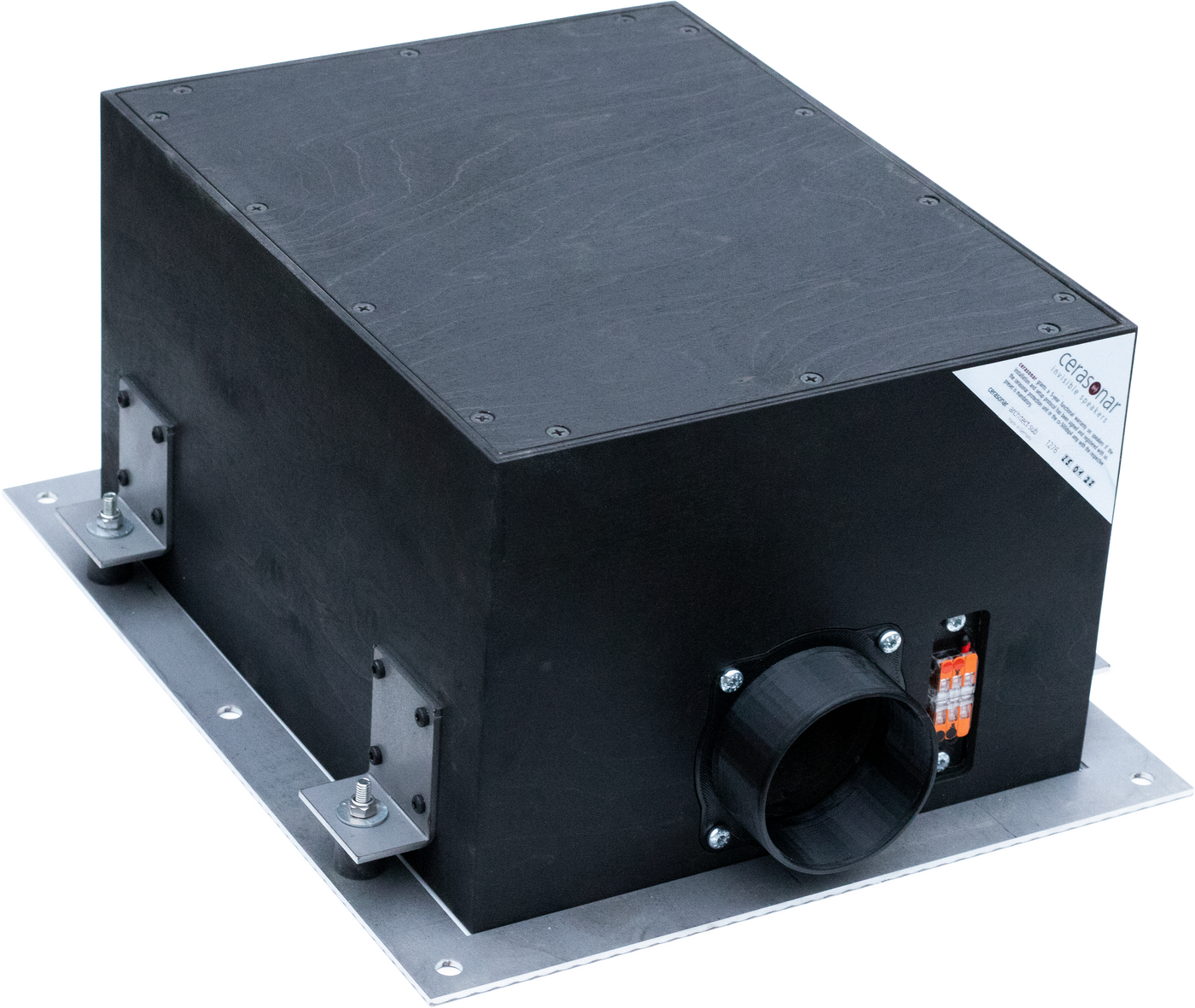

For vibration-sensitive installations, the cerasonar architect sub is the ideal system partner. Its vibration-isolated construction significantly reduces structure-borne sound transmission, making it particularly suitable for lightweight walls, suspended ceilings and acoustically demanding projects. Where installation space is available and structural vibrations are not a concern, the cerasonar 4080 sub provides an excellent alternative with greater low-frequency extension and increased overall system performance.
For optimum performance, the cerasonar 4062 architect should be operated with a suitable cerasonar DSP amplifier together with the dedicated cerasonar factory DSP preset. The preset has been specifically developed for the loudspeaker, optimising tonal balance, seamlessly integrating the recommended subwoofer and providing reliable loudspeaker protection without requiring an additional protection unit.
Depending on the project requirements, the loudspeaker can be combined with the cerasonar cs-150smart2 streaming DSP amplifier or the cerasonar cs-500dsp4 DSP amplifier. The cs-150smart2 offers the simplest all-in-one streaming solution for premium stereo and compact multi-room installations, while the cs-500dsp4 provides additional flexibility for larger residential and commercial projects.
Alternatively, compatible third-party DSP amplifiers from LEA Professional and Powersoft may be used.
- Power rating: 50 w RMS (100 w max)
- Impedance: 4 ohms
- Frequency range: 120 - 20.000 hz*
- Frequency range with cerasonar amp: 100 - 20.000 hz*
- max SPL: 102db
- Dispersion range: 180° x 180° h./v.
- Single stereo mode: no
- for humid environments: no
- Drywall: 1- or 2-layered 12,5 mm plasterboard
- Installation cut out: 35,0 x 57,0 cm
- Dimensions: 40,0 x 62,0 x 3,0 cm
- Weight: 1,5 kg
* depending on installation situation
- cerasonar protection unit pro 25w
- cerasonar cs-500dsp4 amp
- cerasonar cs-2000dsp4 amp

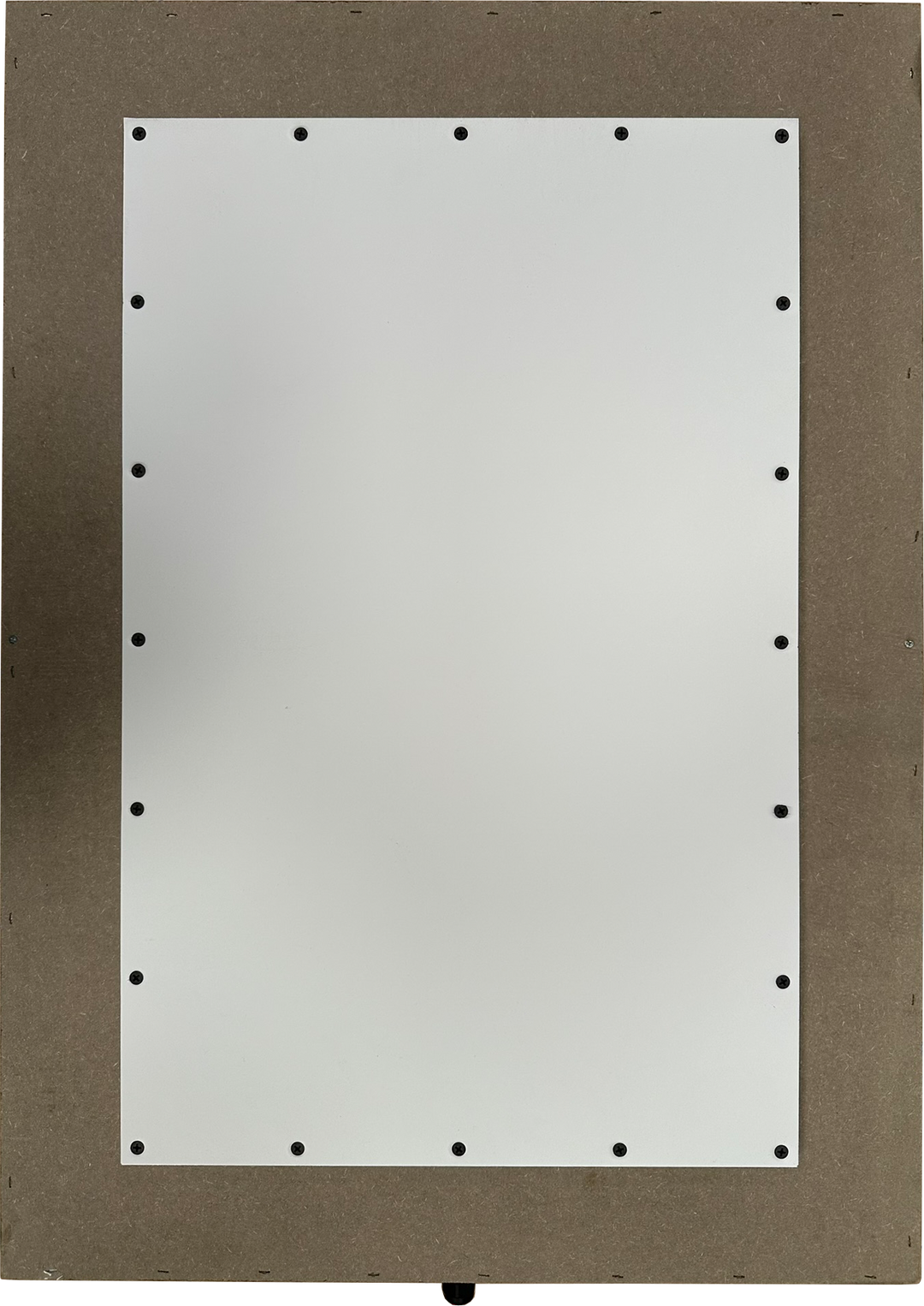

- cerasonar frame/backbox 4062
- cerasonar placeholder 4062
- cerasonar speaker installation cable
only for v2 version - 50 watts
cerasonar 4062 architect - fullrange
file name: 1275-FR-FRAME
(low bass response below 100 Hz, satelitte preset incl. subwoofer highly recommended!)
- cs-500dsp4 v2 - DOWNLOAD
(dynamic bass boost) - cs-2000dsp4 - not available!
- LEA - not available!
----------
cerasonar 4062 architect - high pass @ 120 Hz (additional subwoofer required)
file name: 1275-HP-FRAME
* We recommend using the additionally available installation frame (backbox) for perfect reproduction of the result.
cerasonar 4062 architect - DOWNLOAD
